Nec -  50 - 59 inch Touch Touch Screens

Back
50 - 59 inch Touch/Nec: NEC, 55, V554Q-SST, 10, Point, Multi, Touch, 3840, x, 2160, LED, Display,

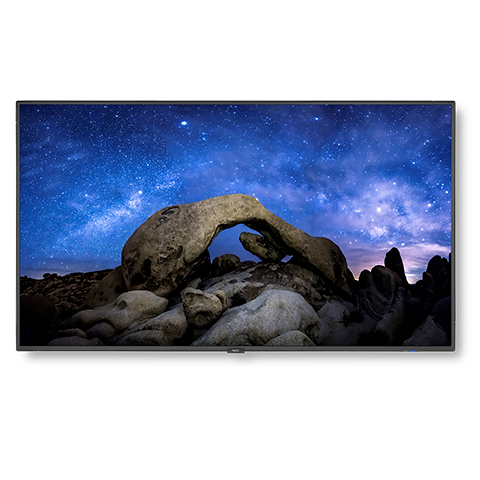

NEC 55" V554Q-SST 10 Point Multi Touch 3840 x 2160 LED Display

Our Price (inc. GST):

$6,647.45

Average Retail:

$7,999

$178.05 /month*

You Save:

$1,351.55

Freight Cost:

Syd:

$20

Melb:

$21.11

Calculate freight to your postcode:

Full Australian Warranty

Australian Distributors

Product is in a sealed box
PRODUCT ID: NECV554QSST

Description

Display

Panel Technology S-IPS Viewable Image Size 55 "
Aspect Ratio 16:9 Native Resolution 3840x2160
Supported Resolutions DisplayPort: V1.2 (HDCP 1.3) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (DisplayPort 1.2)) HDMI: (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (MODE2)), 4096 x 2160 (30Hz, 24Hz, 25Hz, 60Hz (MODE2)) Pixel Pitch 0.32 mm
Pixels Per Inch 80 PPI Brightness (maximum) 500 cd/m2
Contrast Ratio (typical) 1100:1 Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (typical) 8 ms Refresh Rate 60Hz
Orientation Landscape/Portrait Dimming Capability No
Displayable Colors More than 1.07 billion

Synchronization Range

Horizontal (Analog/Digital) 26kHz - 135.0kHz

Signal Compatibility/Connectivity

PC Signal Compatibility Yes Macintosh Signal Compatibility Yes
Input Terminals
Digital:
HDMI 2.0 (3), DisplayPort 1.2 (2)
Audio:
Audio Mini-Jack, DisplayPort Audio, HDMI Audio
External Control:
RS-232C, LAN, IR Remote
Data:
microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered)
Output Terminals
Digital:
DisplayPort (Outputs DisplayPort1 or Option)
Audio:
Audio Mini-Jack, External Speaker Out (2), DisplayPort Audio
External Control:
LAN

Power Consumption (typical)

On 120W ECO Mode Standby 0.5W
Network Standby 2W Power Consumption (max) 170W (Brightness Max), 300W (All Functions Maxed)
Input Current 3.4A @ 100V
1.6A @ 240V

Physical Specifications

Bezel Width (Left/Right, Top/Bottom) 0.47 in./0.47 in., 0.47 in./0.61 in. : 11.9 mm/11.9 mm, 11.9 mm/15.5 mm Dimensions (WxHxD)
With stand:
1238.4 x 712.8 x 68.9mm / 48.8 x 28.1 x 2.7 in.
Without stand:
48.8 x 28.1 x 2.7 in. / 1238.4 x 712.8 x 68.9 mm
Shipping:
1430.0 x 920.0 x 250.0mm / 56.3 x 36.2 x 9.78 in.
Weight
Net Weight (without stand):
59.1 lbs. / 26.8 kg.
VESA Hole Configuration 300 x 300mm (M6 x 12mm)

Environmental Conditions

Operating Temperature 32-104°F / 0-40°C Operating Humidity 20-80%
Operating Altitude 9843 ft. / 3000m Storage Temperature -4-140°F / -20-60°C
Storage Humidity 10-90% Storage Altitude 40,000 ft. / 12,192m

Limited Warranty (parts & labor)

3 Years Advanced Replacement

Additional Features

  • Raspberry Pi Compute Module Compatible
  • SpectraView Engine Color Control (Including Uniformity Adjustment)
  • Integrated OPS Option Slot
  • On-Screen Key Guide
  • Ethernet Control and Communication
  • USB Upstream/Downstream
  • RS-232 Control and Communication
  • CEC Communication
  • HDCP 1.4 and 2.2 support through HDMI
  • HDCP 1.3 support through DisplayPort
  • Firmware via USB/Network
  • Landscape/Portrait Capable
  • Image Flip
  • TileMatrix (10 x 10)
  • Carbon footprint meter
  • 24/7 Scheduler with Real Time Clock
  • Holiday Settings
  • Screen saver function
  • Multi-Picture Mode
  • 28% haze panel
  • Ambient light sensor
  • Screen Saver Function
  • Optional Human Sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Metal rear cabinet
  • Carrying Handles
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in 10W x 2 speakers
  • Powered USB
  • NaViSet Administrator Compatible
  • Auto ID/IP Address Control
  • Crestron RoomView Support
  • AMX Beacon
  • PJLInk Support
  • HDMI and DisplayPort Cable Included


Accessories

Optional
  • Table Top Stand (ST-401)
  • External Speakers (SP-TF1)
  • Any OPS Option Card
  • Wall Mount (WMK-3257)
  • Thin Wall Mount (WMK-3255S)
  • Human Sensor Accessory (KT-RC2)
  • Compute Module Interface Board (DS1-IF10CE)
  • NEC Raspberry Pi Compute Module (RPi3CM16GB)


Cooling Method

Integrated Temperature Sensors and Cooling Fans


Last updated: Friday, 26 February 2021

Warranty

This product is sourced in Australia and carries a full Australian Manufacturers Warranty

Brochure

Brochure
